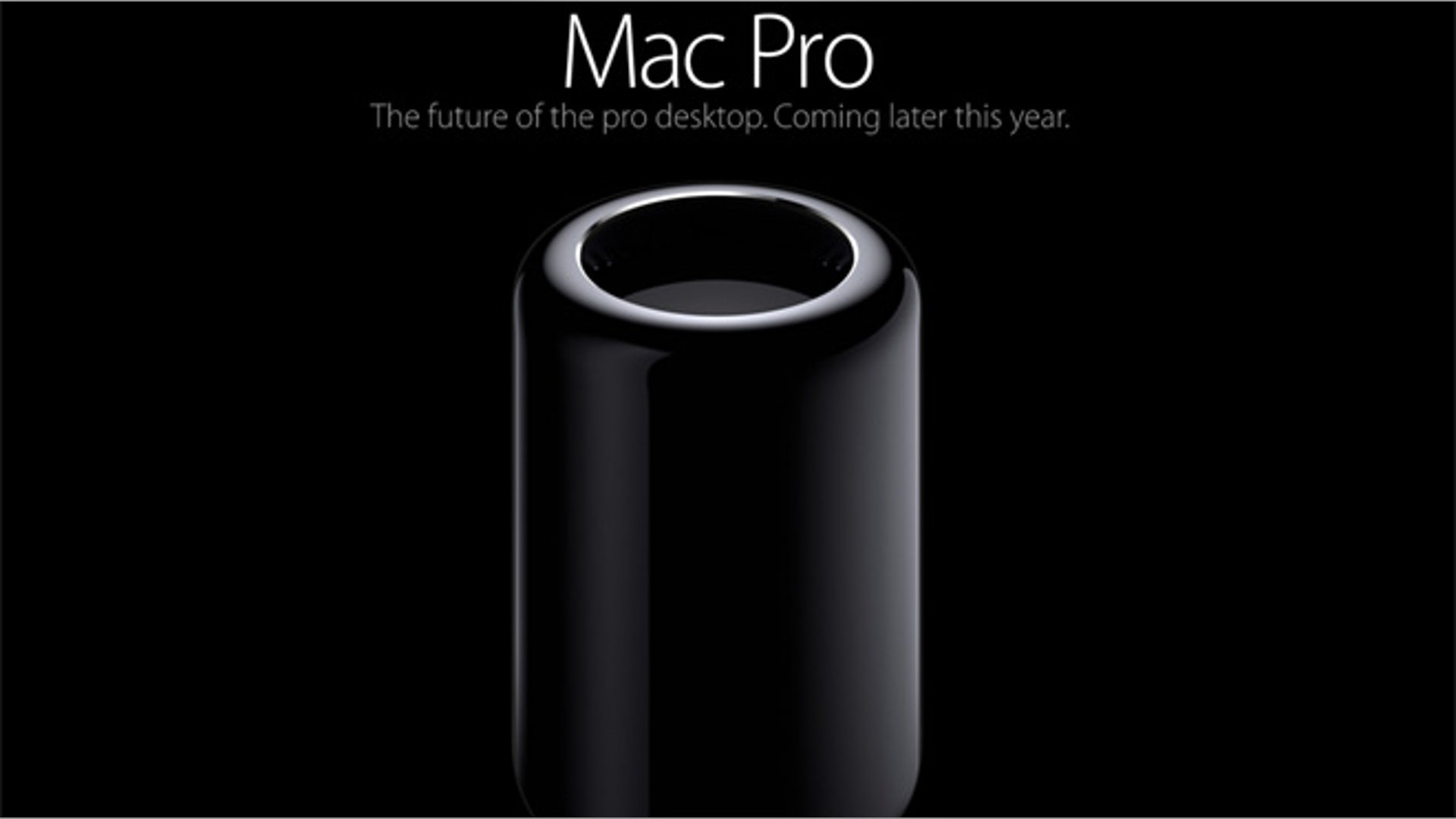

When Apple began work on the next Mac Pro, they considered every element — graphics, storage, expansion, processing power, and memory. Here’s a sneak peek at what’s next for the pro computer.![mb2copy]()

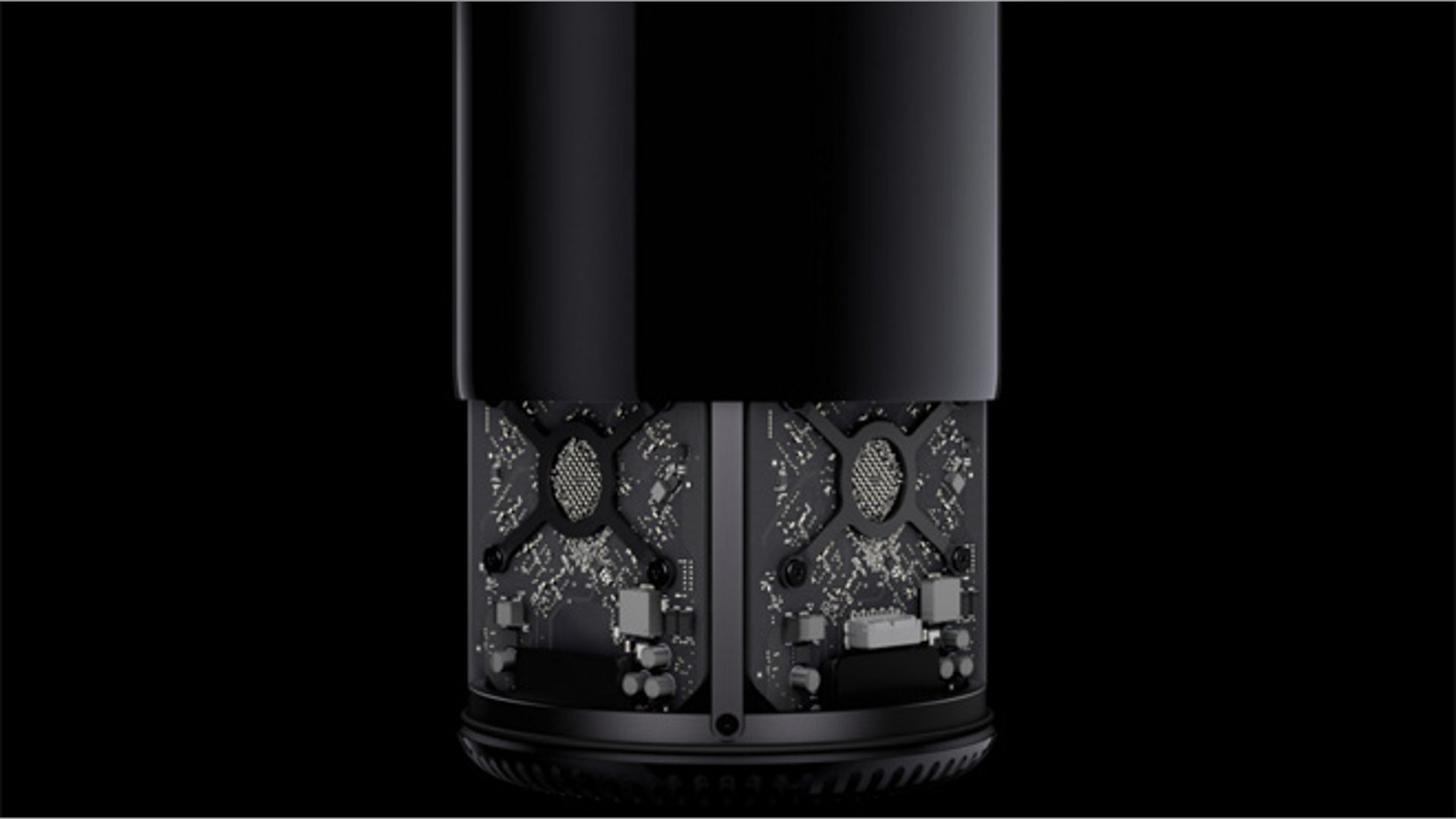

The New Power Structure Engineered around workstation graphics with dual GPUs, PCI Express-based flash storage, high-performance Thunderbolt 2, new-generation Xeon processors, ultrafast memory, and support for 4K video, the new Mac Pro delivers state-of-the-art performance across the board.![mb3]()

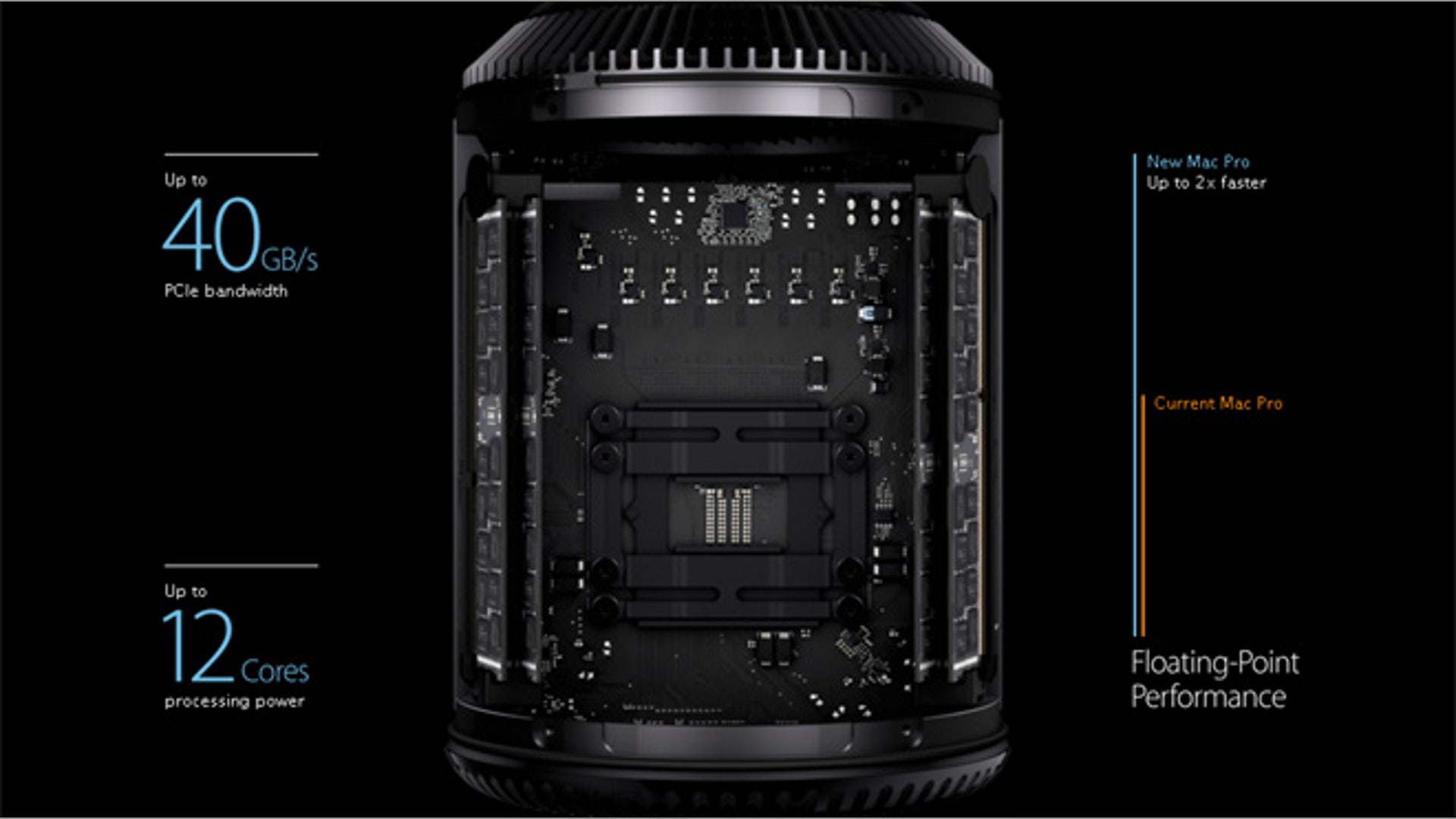

Processor The new Mac Pro is muscle through and through, starting with the new-generation Intel Xeon E5 chipset. With configurations offering up to 12 cores of processing power, up to 40GB/s of PCI Express gen 3 bandwidth, and 256-bit-wide floating-point instructions, you’ll never be at a loss for speed.![mb4]()

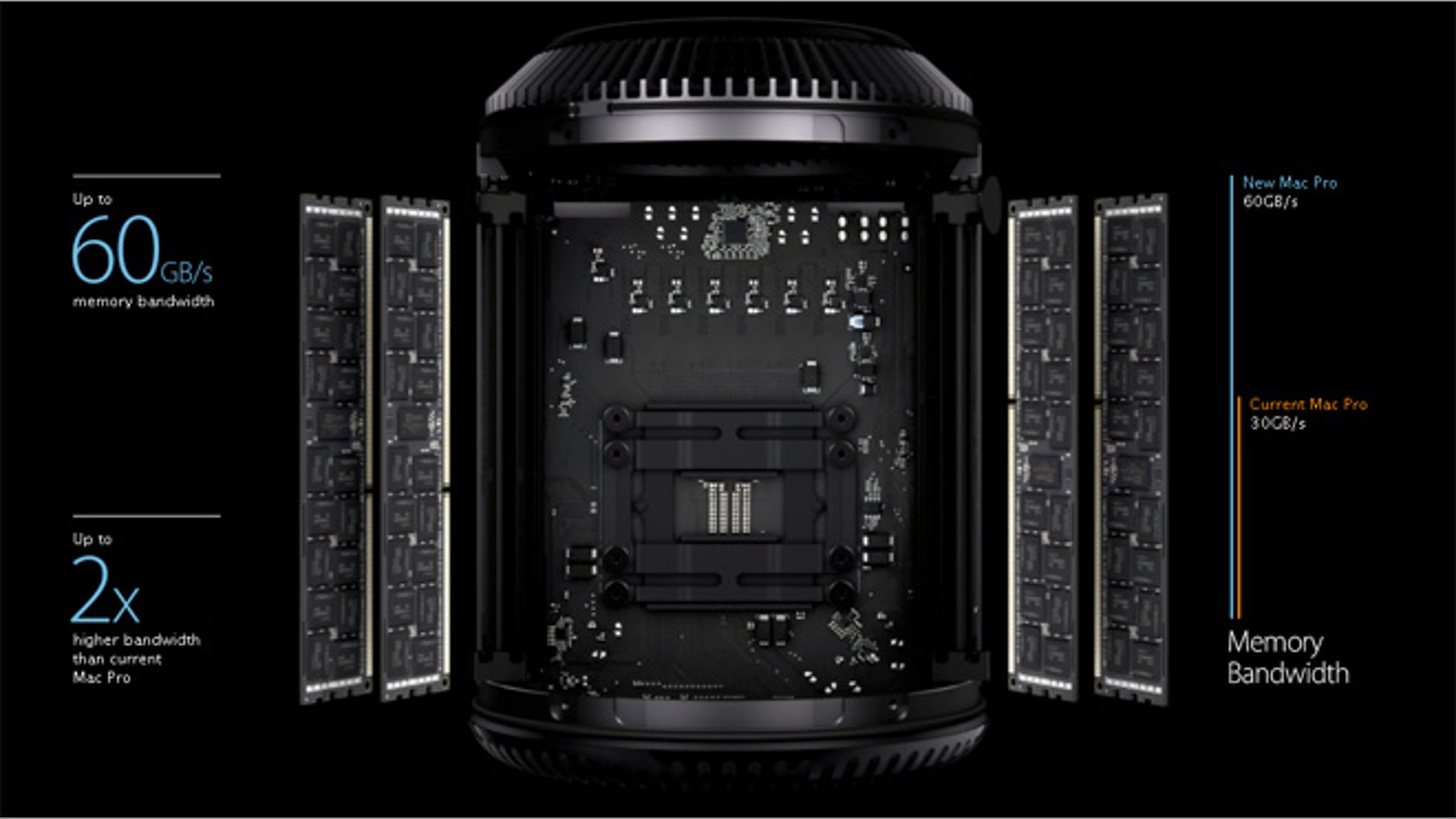

Memory The Mac Pro includes a four-channel DDR3 memory controller running at 1866MHz. It delivers up to 60GB/s of memory bandwidth, which means you can fly through even the most compute-intensive tasks in no time. And since it’s ECC memory, your render job, video export, or simulation won’t be stopped by transient memory errors.![mb5]()

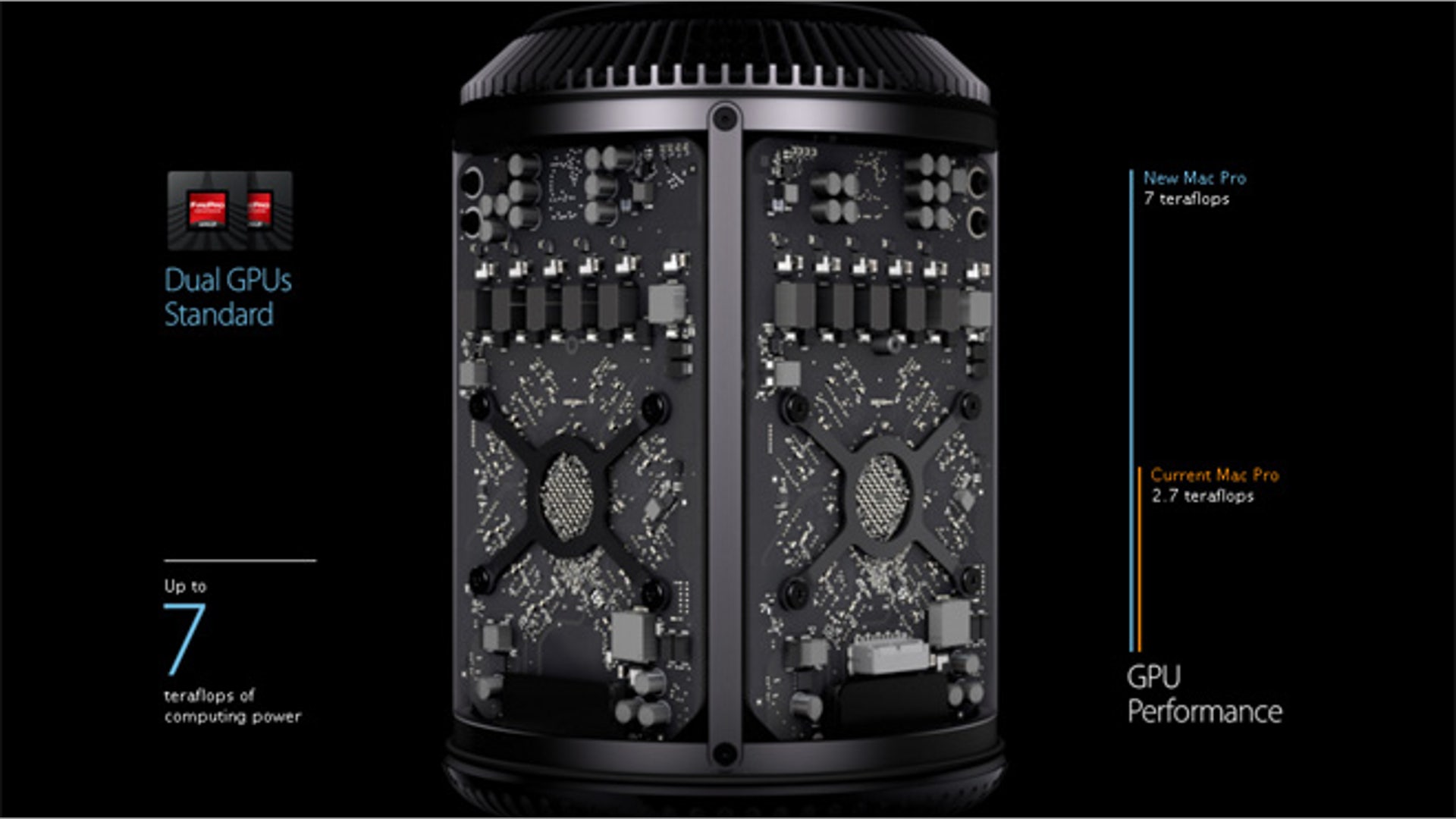

Graphics Traditionally, pro computers have relied primarily on the CPU for their computing power. But as GPU performance has dramatically increased, software developers have begun to leverage that power in their apps. The Mac Pro features two state-of-the-art AMD FirePro workstation-class GPU with up to 6GB of dedicated VRAM. With all that power, you should be able to do things like seamlessly edit full-resolution 4K video while simultaneously rendering effects in the background — and still have enough power to connect up to three high-resolution 4K displays.![mb6]()

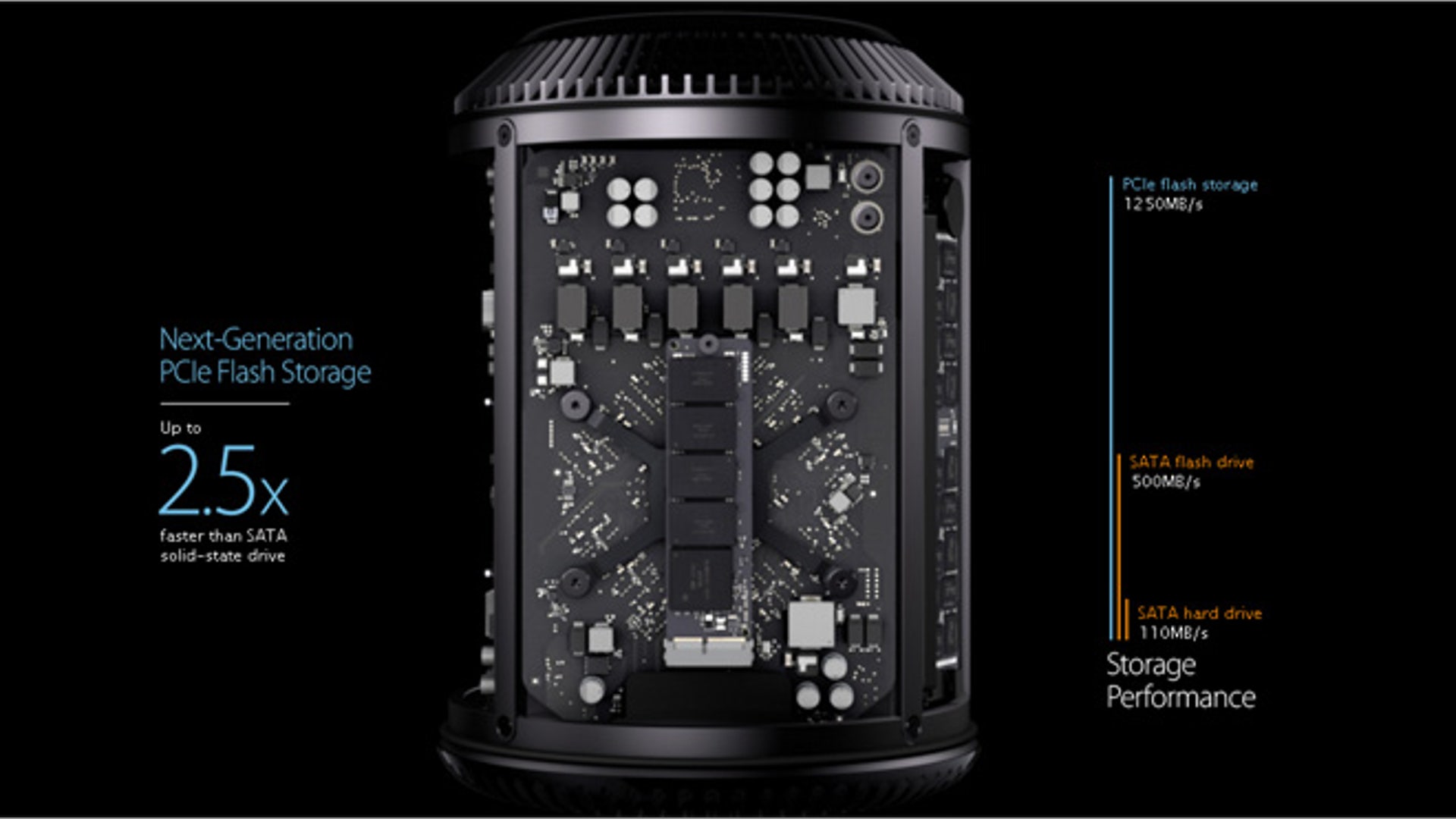

Storage There’s flash storage, and then there’s next-generation PCI Express flash storage. We’re talking storage that’s up to 2.5 times faster than the fastest SATA-based solid-state drive and up to 10 times faster than a 7200-rpm SATA hard drive. The new Mac Pro was designed around new PCI Express-based flash controller technology to deliver the fastest solid-state drives available standard in a desktop computer. So booting up, launching apps, even opening massive files happens in, well, a flash.![mb7]()

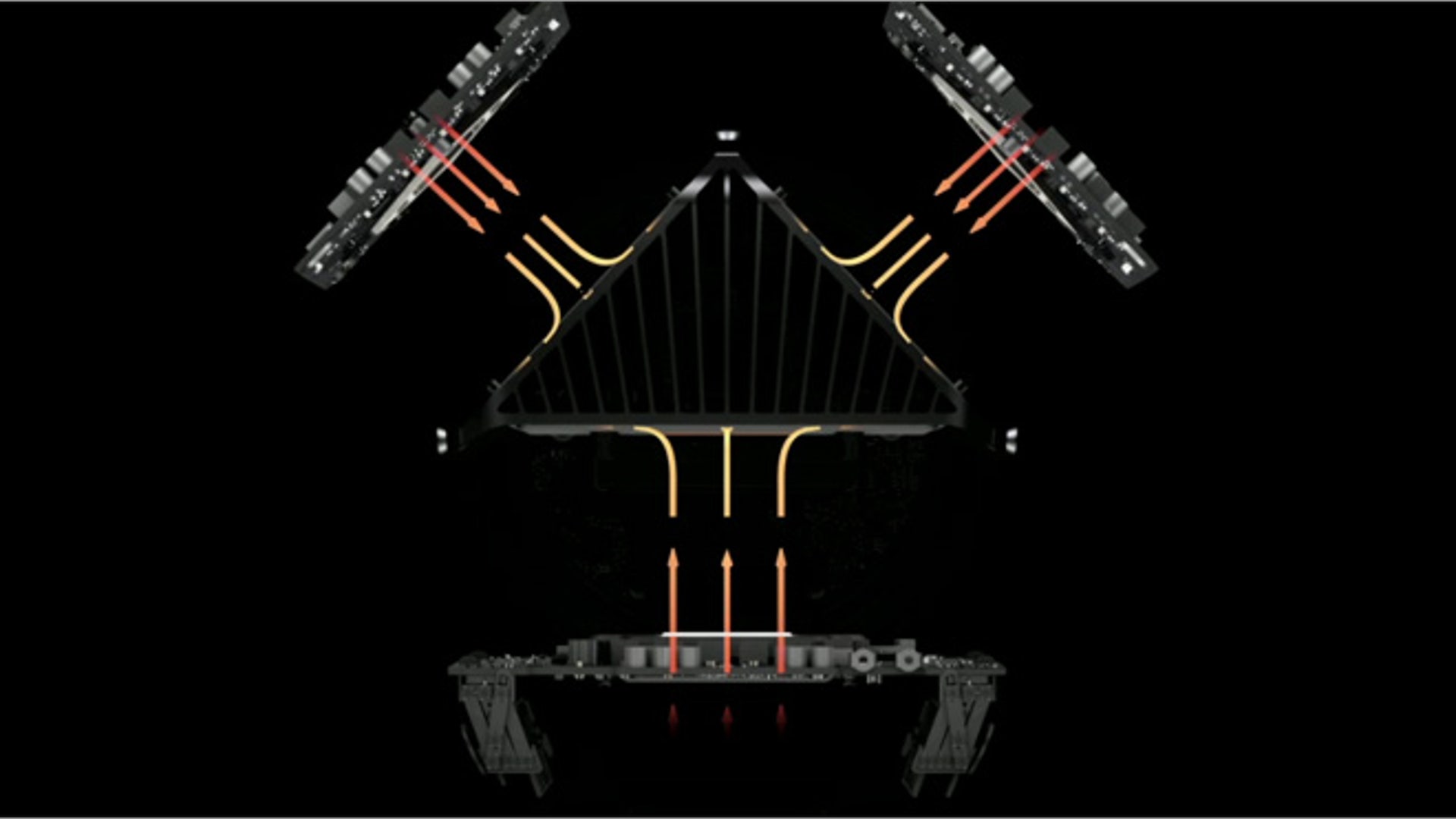

Thermal Core The new Mac Pro packs a large amount of power in a small amount of space through the use of a unified thermal core. Rather than using multiple heat sinks and fans to cool the processor and graphics cards, they built everything around a single piece of extruded aluminum designed to maximize airflow as well as thermal capacity. It works by conducting heat away from the CPU and GPUs and distributing that heat uniformly across the core. That way, if one processor isn’t working as hard as the others, the extra thermal capacity can be shared efficiently among them.![mb8]()
A Single Fan Instead of adding extra fans, Apple engineered a single, larger fan that pulls air upward through a bottom vent. As air passes vertically through the center of the device, it absorbs heat and carries it out the top. It’s simple and elegant — and also astonishingly quiet. By minimizing air resistance throughout the system, Apple was able to design a fan with backward-curved impeller blades that runs at fewer revolutions per minute, draws air more efficiently as it spins, and creates considerably less noise.![mb9]()

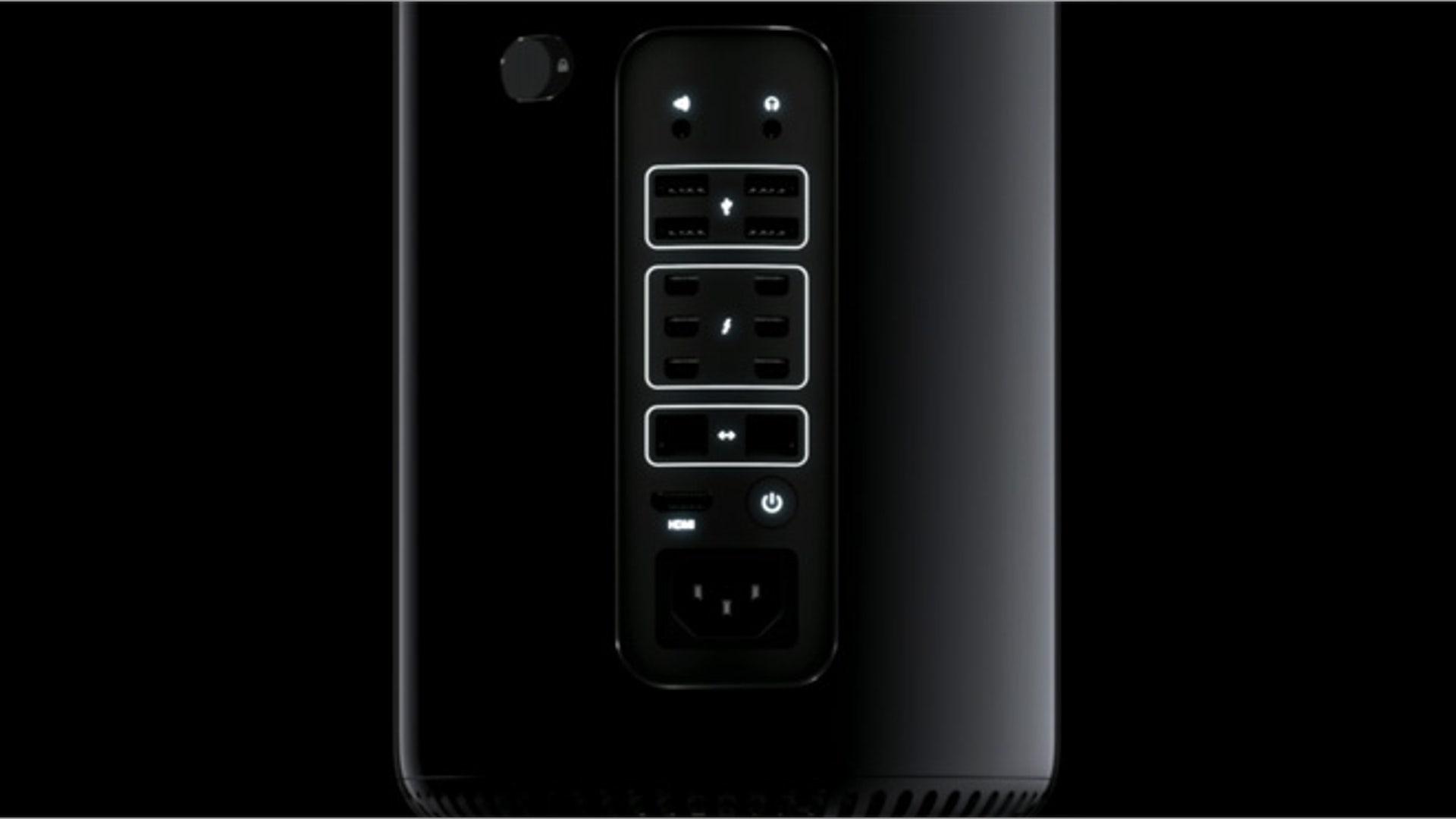

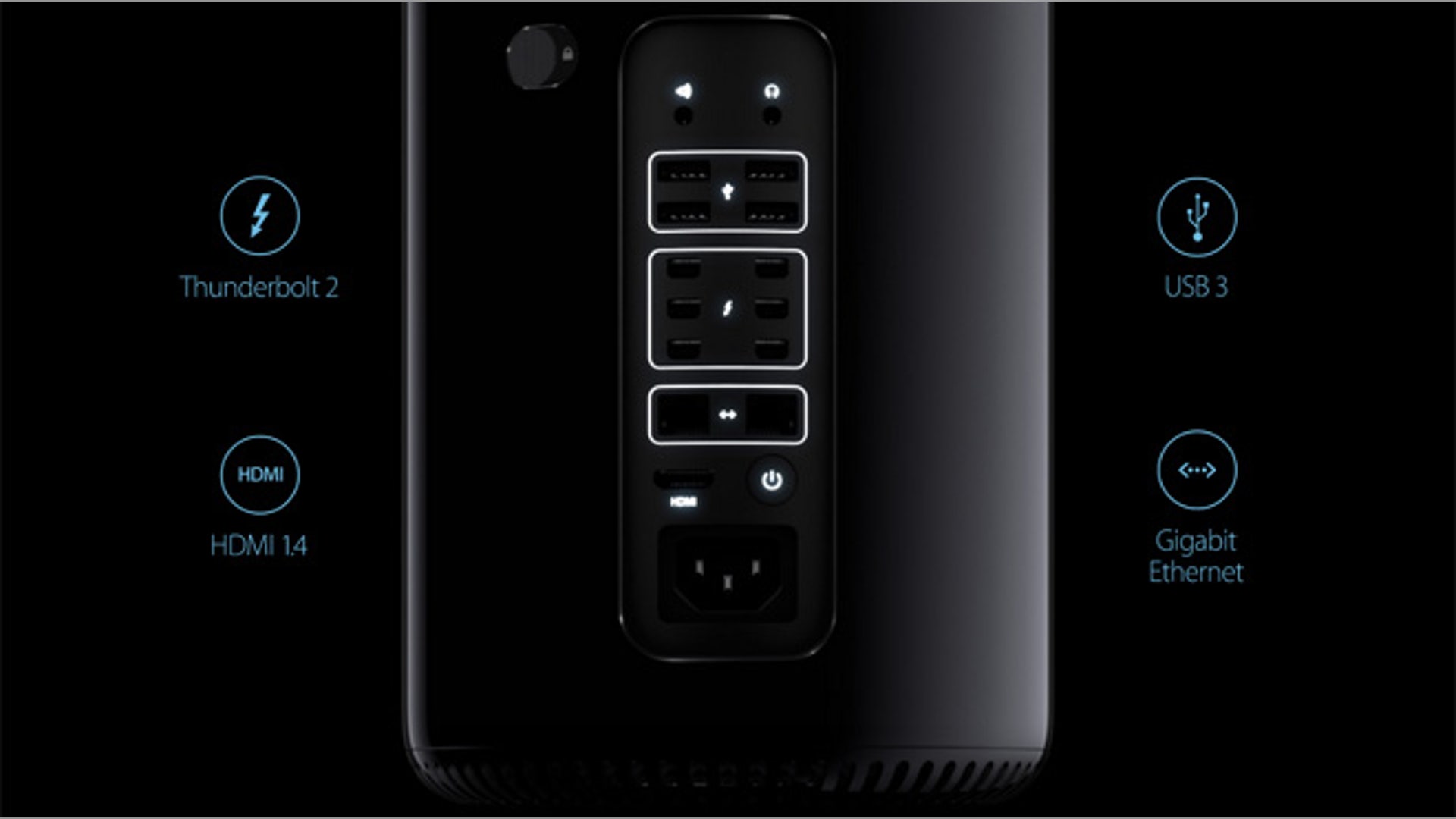

Vastly Expanded Designed with built-in Thunderbolt 2, USB 3, Gigabit Ethernet, and HDMI 1.4 ports, Mac Pro sets a new standard in flexible, high-performance expansion.![mb10]()

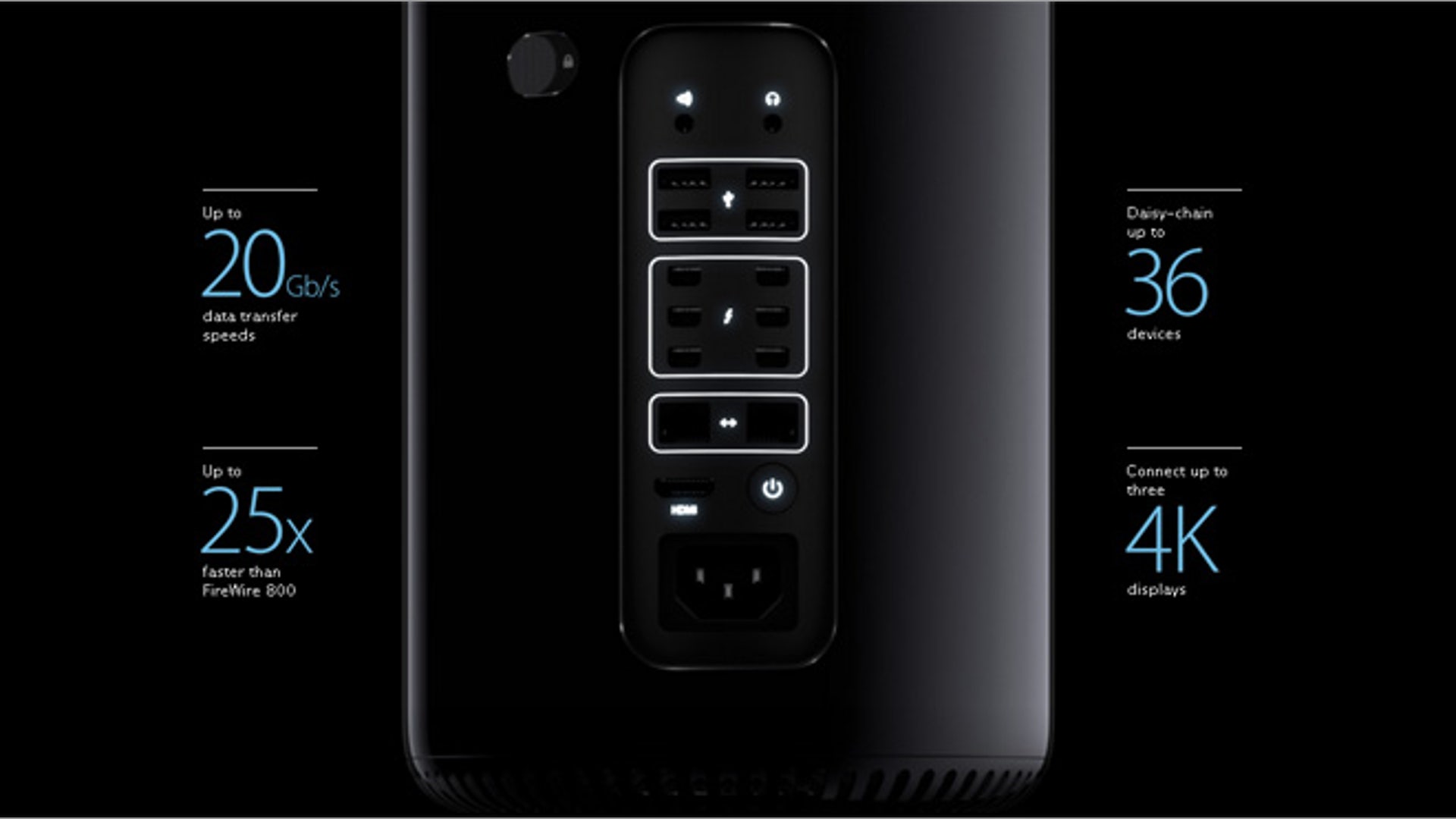

Thunderbolt 2 Thunderbolt 2 delivers twice the throughput, providing up to 20Gb/s of bandwidth to each external device. You can connect massive amounts of storage, add a PCI expansion chassis, and work with the latest external displays — including 4K desktop displays and peripheral devices capable of broadcast monitoring in 4K. And since each Thunderbolt 2 port allows you to daisy-chain up to six peripherals, you can go all out by plugging in up to 36 external devices via Thunderbolt alone.![mb11]()
Other I/O Connections Mac Pro equips you with all kinds of connections for all kinds of peripherals. USB 3 gives you the versatility to hook up dozens of different types of external devices. Two Gigabit Ethernet ports let you connect to multiple networks. And an HDMI 1.4 port provides support for the latest televisions, projectors, and displays, including Ultra HD TVs. As you rotate Mac Pro to plug in a device, it senses the movement and automatically illuminates the I/O panel. So you can easily see the ports you need when you need them.![mb12]()

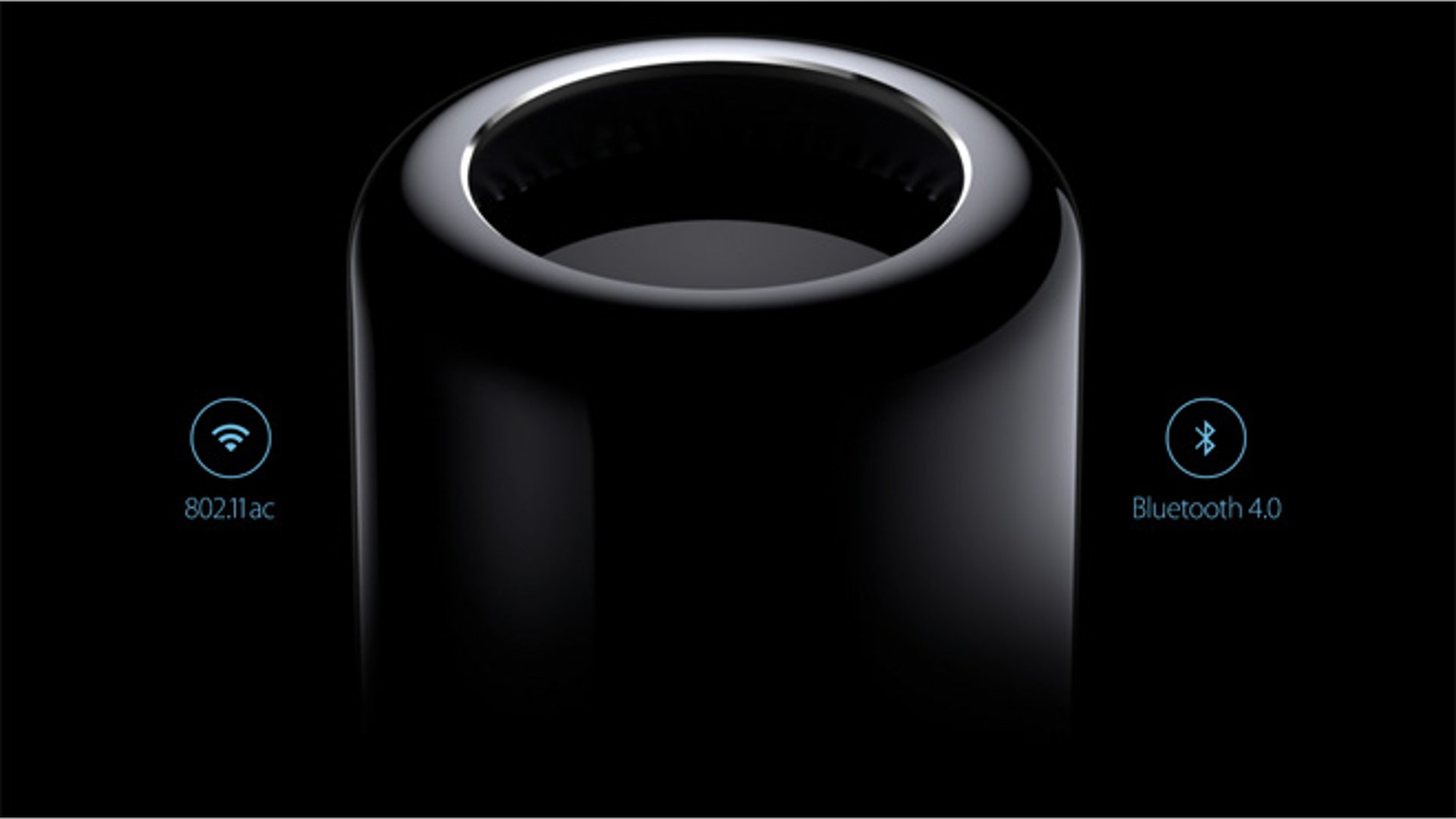

Advanced Wireless Access your network over three-stream 802.11ac Wi-Fi for the latest in high-speed wireless connectivity. For all your other wireless connections, Mac Pro includes Bluetooth 4.0. It’s the fastest, most reliable way to connect your keyboard, mouse, and other wireless devices without having to physically attach anything.![mb13]()

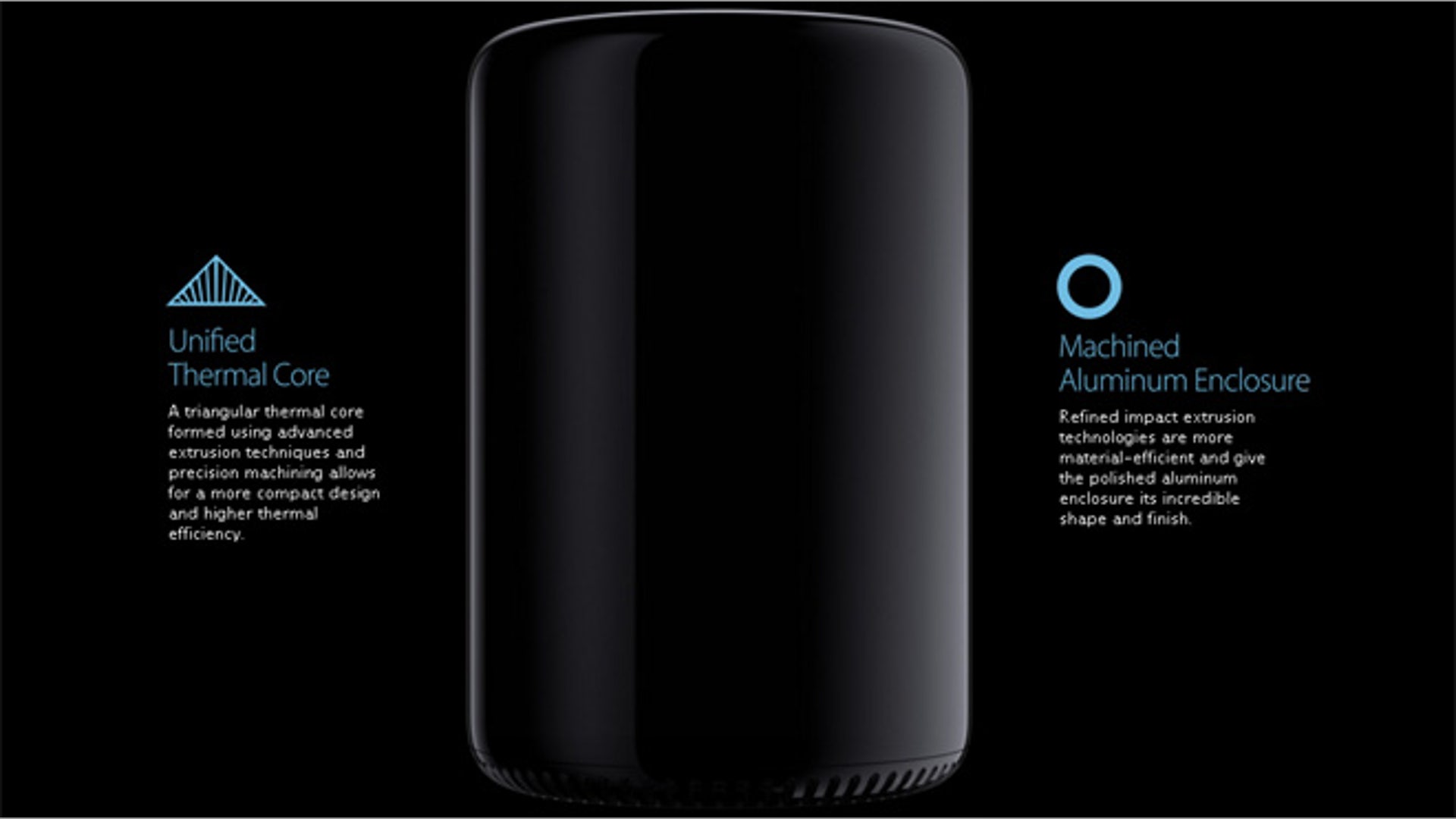

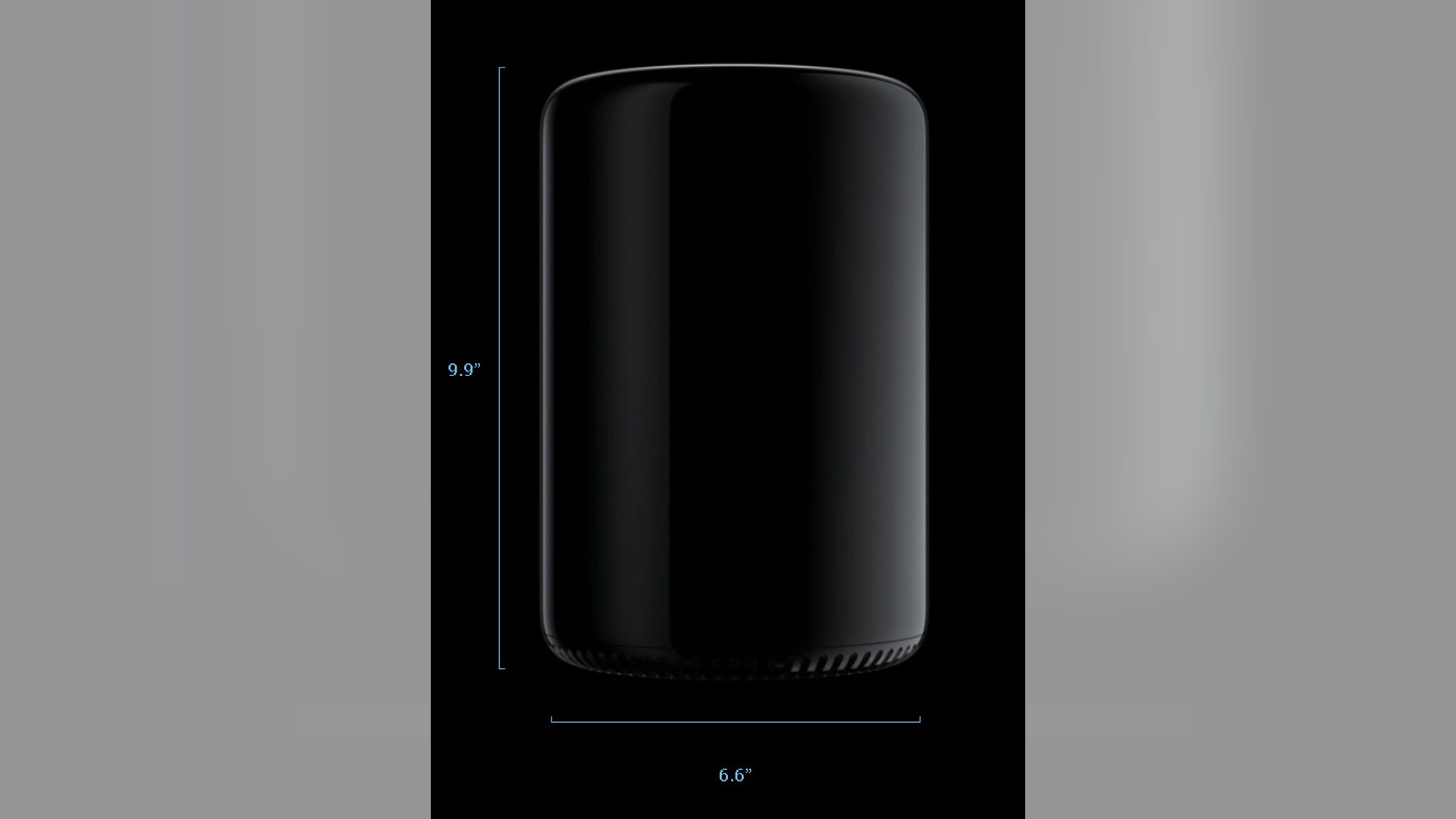

Radical Look The new Mac Pro looks unlike any other computer. And at just 9.9 inches tall with a diameter of just 6.6 inches, it’s a pro desktop computer that can actually sit on your desk.![mb14]()
Designed and Assembled in the U.S. By leveraging the innovative power of industry-leading companies in Texas, Florida, Illinois, Kentucky, and over a dozen other states across America, Apple is able to assemble the entire new Mac Pro and machining several of its high-precision components in the United States.Sneak peek at Apple's new Mac Pro
